Star Delta Starter

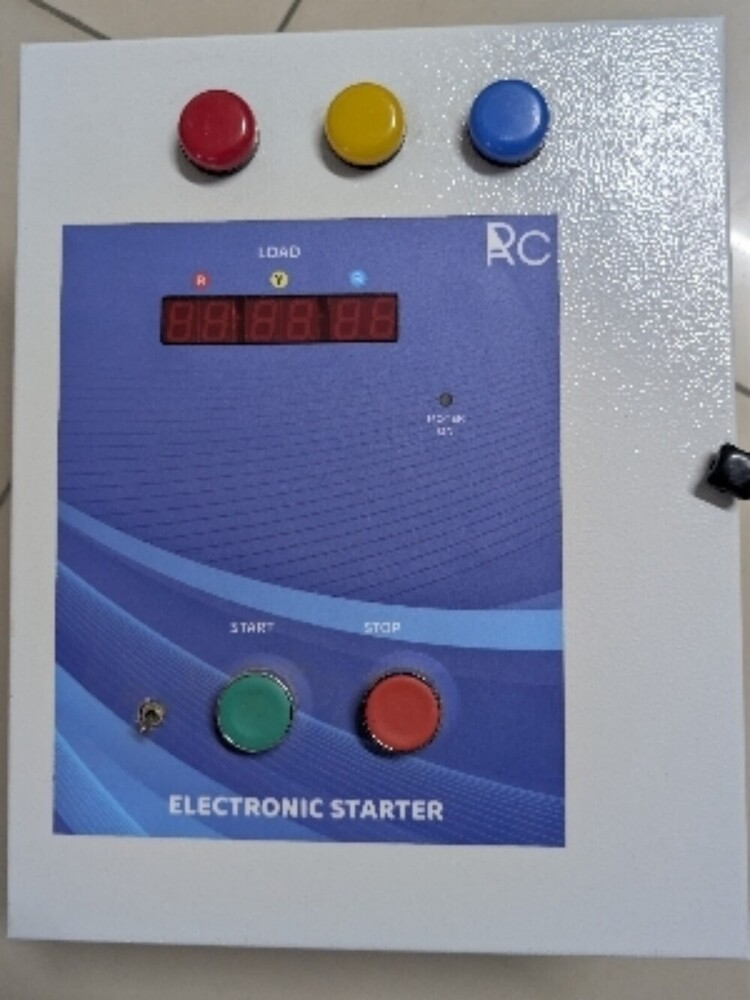

Name: Star Delta Starter
Brand: Riddhi Automation & Control
Price: 10999 INR
Availability: InStock

Price 10999 INR/ Unit

Get a Price/Quote

MOQ : 1 Piece

Star Delta Starter Specification

Power Source
Electric

Components
Enclosure, Contactors, Overload Relay, Timer, Push Buttons

Output
Contactors to Motors

Operating Temperature
-10C to +50C

Power Supply
Three Phase

Display Type
LED Displays

Interface
Manual/Push Button

Input
415V AC, 50Hz

Features
Fully Automatic Switching, Built-in Overload & Short-circuit Protection, Robust Sheet Metal Enclosure

Response Time
Instantaneous switching <1 sec

Thermal Conductivity
Not Applicable

Sensors Specification
Voltage Monitoring Relay and Overload Relay

Resolution
Not Applicable

Charging Voltage
Not Applicable

Usage
Industrial Motor Starter

Processor Speed
Not Applicable

IP Rating
IP42

Product Type
Star Delta Starter

Power Rating
Up to 15 kW (25 HP)

Application
Suitable for Pumps, Blowers, Compressors, etc.

Supply Voltage
415 V Volt (v)

Size
Medium (Wall Mounted)

Dimension (L*W*H)
350 x 250 x 200 mm Millimeter (mm)

Function
Motor Starting and Protection

Color
Grey & White

Weight
Approx. 4 kg Kilograms (kg)

Rated Voltage
415 V AC Volt (V)

Usage & Applications
Pumps, Compressors, Blowers, Fans, Conveyors, Industrial Machinery, Water Treatment Plants

Warranty
1 Year

Cable Type
Copper Power & Control Cable

Phase
Three Phase

Conductor
Copper

Material
CRCA Powder-Coated Steel

Rated Current
32 Ampere (A) Ampere (amp)

Thickness
1.6 mm Sheet Metal

Current Rating
32 A

Capacity
Up to 25 HP Motor

Frequency
50 Hz

Control Voltage
110-240 V AC

Cable Entry
Top & Bottom

Starter Type
Direct-on-line (DOL) changeover to Star-Delta

Humidity
< 90% RH, Non-Condensing

Protection Class
Class I

Mechanical Durability
>1 Million Operations

Switch Type
Push Button Control

Enclosure Type
Powder Coated Sheet Metal

Mounting Type
Wall / Surface Mounted

Motor Rating
7.5 HP to 25 HP

Contact Material
Silver Alloy Contacts

Phase
Three Phase

Star Delta Starter Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Standard

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
10 Pieces Per Day

Delivery Time
1 Week

Main Export Market(s)
Asia

Main Domestic Market
All India

About Star Delta Starter

The Digital Starter is an industrial-grade starter that is designed to provide a reliable and efficient power supply. With a rated voltage of 220-240 Volt (V), this electric-powered starter is perfect for industrial applications. It comes in a sleek blue color and is available in different sizes to suit your specific needs. As a manufacturer, service provider, and supplier, we understand the importance of quality and durability, which is why our DigitalStarter comes with a warranty. This starter is designed to be easy to use, with simple controls that make it ideal for both experienced and novice users. It is perfect for controlling three-phase motors and can be used in a wide range of applications, including pumps, fans, compressors, and more. With its compact design and robust construction, the Digital Starter is a reliable and cost-effective solution for your industrial power needs. FAQs of Digital Starter: Q: What is the warranty period for the Digital Starter? A: Our Digital Starter comes with a warranty. Please contact our customer support team for more information on the warranty period. Q: What is the rated voltage of the Digital Starter? A: The rated voltage of the Digital Starter is 220-240 Volt (V), making it suitable for industrial applications. Q: What is the application of the Digital Starter? A: The Digital Starter is an industrial-grade starter that is designed to provide a reliable and efficient power supply. It is perfect for controlling three-phase motors and can be used in a wide range of applications, including pumps, fans, compressors, and more. Q: What is the power supply for the Digital Starter? A: The Digital Starter is powered by electricity. Q: What sizes are available for the Digital Starter? A: The Digital Starter is available in different sizes to suit your specific needs. Please contact our customer support team for more information on available sizes.

Reliable Motor Starting and Protection

Engineered for industrial applications, this star-delta starter ensures safe and efficient motor operation. Its fully automatic transition from direct-on-line to star-delta starting minimizes electrical stress, while built-in overload and short-circuit protection enhances safety and prolongs motor life. The robust enclosure and advanced circuitry make it suitable for demanding environments.

User-Friendly and Versatile Installation

Featuring a medium-sized, wall-mounted design (350 x 250 x 200 mm), this starter is easy to mount on any surface. Multiple cable entry points (top and bottom) and push button controls allow for hassle-free wiring and operation. With an intuitive LED display and manual interface, users can monitor system status at a glance.

Durability and High Performance

This product is built with premium materials like silver alloy contacts and 1.6 mm sheet metal, ensuring durability with over one million mechanical operations. It operates effectively in varying temperatures (-10C to +50C) and humidity levels (<90% RH, non-condensing), making it a dependable solution for sustained industrial usage.

FAQ's of Star Delta Starter:

Q: How does the star-delta starter benefit motor operations in industrial settings?

A: By automatically switching between direct-on-line and star-delta configurations, this starter reduces the inrush current during motor startup, minimizing electrical and mechanical stress on the equipment. This prolongs motor life and enhances overall plant safety and efficiency.

Q: What is the installation process for this star-delta starter?

A: Installation is straightforward due to its wall/surface mounting design and cable entries on both top and bottom. Mount the enclosure using appropriate fasteners, connect the three-phase supply and motor cables, and set up the control connections as per the provided wiring diagram. Finalize by configuring the timer and protection settings.

Q: Where is this starter typically used?

A: This starter is ideal for industrial environments where reliable motor control is essential. Common applications include pumps, blowers, compressors, and other machinery that utilize three-phase motors up to 25 HP. It is especially suitable for locations requiring robust protection and automated motor control.

Q: What safety features does the star-delta starter offer?

A: The product incorporates built-in overload and short-circuit protection, a robust sheet metal enclosure, and class I protection. These features help prevent damage to both the motor and the starter, ensuring long-term safe and reliable operation.

Q: When should the starter be used for motor applications?

A: This starter should be used whenever a three-phase induction motor ranging from 7.5 HP to 25 HP needs reliable and safe starting under high load conditions, or where minimizing voltage drops and reducing start-up currents are a priority.

Q: What are the advantages of the built-in LED display and push button controls?

A: The LED display allows clear, real-time monitoring of the starter's status, enabling quick diagnostics. Push button controls provide simple manual interface for starting or stopping the motor, enhancing operator convenience and safety.
