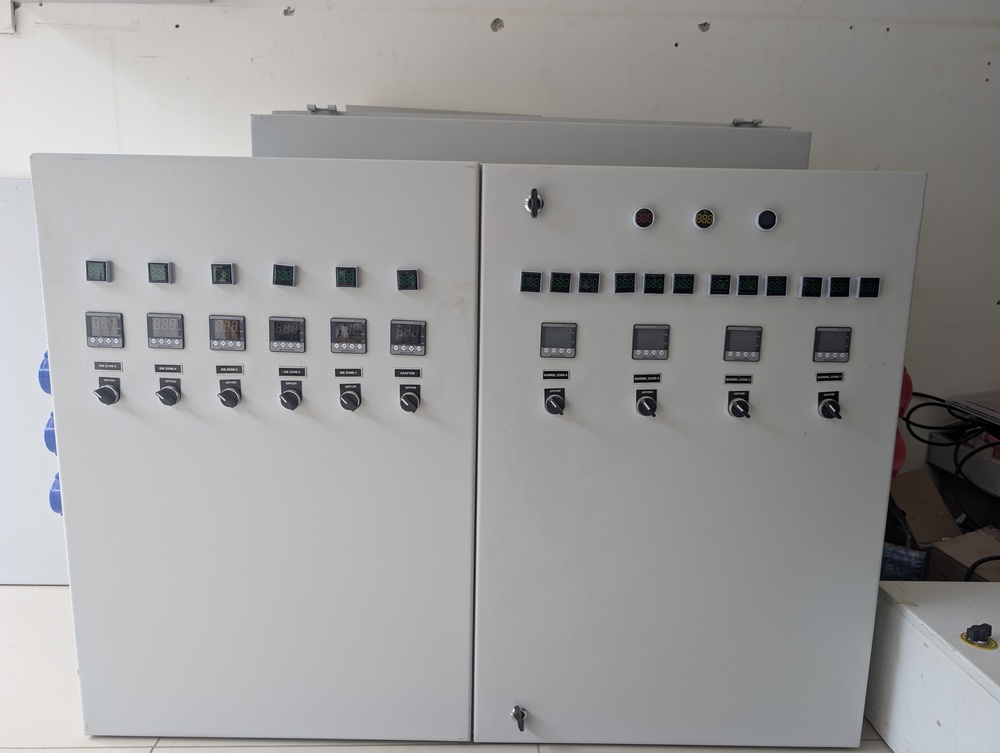

Industrial control panel

Get a Price/Quote

Industrial control panel Specification

Protection Level
IP55

Control System
PLC Based Control

Connectivity Type
Hardwired Terminal Blocks

Cabinet Material
Mild Steel

Panel Type
Floor Mounted

Operating Voltage
415V AC

Current Rating
630A

Way
Customized

Features
Lockable door, Rust Proof, Shock proof, High Safety

Rated Current
630A

Cover Material
Other

Rated Insulation Voltage
690V AC

Rated Operation Voltage
415V AC

Components
MCB, MPCB, Contactors, Relays, Indicating Lamps

Thickness
1.6 mm

Protection Class
Class I

Base Material
Mild Steel

Cooling System
Natural Air Ventilation

Product Type
Other

Material
Mild Steel (MS)

Surface Finish
Powder Coated

Standard
IEC 61439

Surface Color
Other

Rated Voltage
415V AC

Frequency (MHz)
50 Hz

Maximum Output Current
630A

Dimension (L*W*H)
1800 x 800 x 600 mm

Application
Industrial Automation, Machinery Control

IP Rating
IP55

Display Type
Analog/LED Indicators

Painting
Seven Tank Process, Epoxy Powder Coated

Accessories
Name Plate, Danger Board, Cable Lugs

Cable Entry
Top/Bottom cable entry provision

Enclosure Type
Sheet Metal Enclosure

Operating Temperature
-10C to +55C

Door Type
Single/Double Leaf Hinged

Earthing Provision
Provided as per IS standards

Mounting Type
Floor Standing

Humidity Range
Up to 95% RH (Non-condensing)

Wiring
Copper bus bars

Industrial control panel Trade Information

FOB Port
Standard

About Industrial control panel

Industrial Control Panel is a high-quality electrical enclosure that is designed to provide optimum protection against dust, moisture and other environmental factors. It is made of mild steel material which provides durability and strength to the product. With a rated voltage of 220-440 Volt (V) and frequency of 50 Hertz (HZ), it is suitable for various industrial parts applications. The panel comes in different available thicknesses of millimeters (mm) and has a powder-coated surface finish that enhances its aesthetic appeal. It is backed by a warranty, ensuring its quality and reliability for years to come. FAQs of Control Panel: Q: What is the material used in the Control Panel? A: The Control Panel is made of mild steel material. Q: What is the rated voltage of the Control Panel? A: The rated voltage of the Control Panel is 220-440 Volt (V). Q: What is the surface finish of the Control Panel? A: The Control Panel has a powder-coated surface finish. Q: What is the warranty period of the Control Panel? A: The Control Panel comes with a warranty. Q: What is the frequency of the Control Panel? A: The frequency of the Control Panel is 50 Hertz (HZ).

Engineered for Reliability and Safety

Constructed from high-quality mild steel and powder-coated for superior corrosion resistance, this control panel is built for lasting performance. Its IP55 rating ensures robust protection against dust and water, while safety features like lockable doors, nameplates, and danger boards meet the rigorous requirements of industrial environments.

Versatile Design for Maximum Flexibility

With customizable ways, single or double leaf hinged doors, and both top and bottom cable entry provisions, this panel accommodates a wide range of installation needs. Whether managing automation systems or heavy machinery, its adaptable design enables seamless integration with existing infrastructure.

Superior Control and Connectivity

Equipped with essential components, including MCBs, contactors, relays, MPCBs, and PLC-based control systems, this panel delivers precise and efficient control. Its analog/LED indicators and hardwired terminal block connectivity ensure clear system monitoring and reliable operation.

FAQ's of Industrial control panel:

Q: How does the industrial control panel ensure safety during operation?

A: The panel is designed with a sheet metal enclosure, lockable single or double leaf hinged doors, and proper earthing as per IS standards to provide maximum safety. Components like MCBs and contactors, along with IP55 protection, help mitigate electrical and environmental hazards.

Q: What are the primary applications for this floor-standing control panel?

A: This control panel is ideal for industrial automation and machinery control in manufacturing plants, processing units, and other industrial facilities. Its robust construction and customizable options make it suitable for demanding operational environments.

Q: When should this control panel be chosen over a wall-mounted variant?

A: A floor-standing panel is preferred when handling higher current ratings, larger wiring spaces, or when the installation requires a larger number of components. It provides stable support and simplifies cable management for heavy-duty and customized setups.

Q: Where can cable entries be made in this panel, and how does it assist installation?

A: The control panel offers both top and bottom cable entry provisions, allowing flexibility in cable routing and making installation easier regardless of the facility layout.

Q: What process is used for painting and surface finishing of the enclosure?

A: The enclosure undergoes a seven-tank process followed by epoxy powder coating. This advanced surface treatment ensures high resistance to rust, corrosion, and enhances the overall durability of the control panel in harsh environments.

Q: How does the cooling system work within the panel?

A: This control panel utilizes natural air ventilation for cooling, which efficiently dissipates heat from the internal components, ensuring stable operation without the need for mechanical fans.

Q: What are the key benefits of using a panel built to IEC 61439 and IS standards?

A: Compliance with IEC 61439 and IS standards guarantees safety, reliability, and consistent performance. These standards ensure that the panel meets international and national quality benchmarks for electrical and mechanical safety.
